Learn and build web application using MVC and Entity framework code first, code migration approach

Video : https://www.youtube.com/watch?v=GanjklfebEc&index=1&list=PLdmgFSerzv2Kl00tz0qY-jxDPnPowpRaT

Learn MVC and Entity framework code first,code migration approach using sample demo application

Video : https://www.youtube.com/watch?v=OhJtxRvgeK0&list=PLdmgFSerzv2Lhj5dFrD75sz26qGdxpo8Z

Entity Framework

Video : https://www.youtube.com/watch?v=e_LfhNHJuqs

Entity Framework is an Object Relational Mapping (ORM) framework that enables developers to work with relational data has a domain specific object, eliminating the use of most of the data access plumbing code that developers usually need to write.
Entity Framework is an enhancement to ADO.net that gives developers an automated mechanism for accessing and storing the data.
Developers can write Linq queries for getting the data from the database using Entity Framework.
Entity Framework helps us to retrieve and manipulate data as strongly typed objects.

Approaches in Entity Framework

Model First: database model is created first using the ORM designer tool in Visual Studio. Once the model consisting of entities and relationships has been designed, the physical database and classes will be auto generated from the model with the help of Entity Framework.
Data Base First: Database is created first or we can use the existing database and then code will be auto generated with the help of Entity Framework.
Code First: Create a set of classes i.e. code first and the database will be auto generated by the help of Entity Framework.

Why Entity Framework

There are 2 types of model or groups like

Logical or Storage Model – deals with tables, primary key, foreign key etc. which will be handled by 1 group of people called as database centric
Conceptual or Object Oriented Domain Model - deals with objects, properties, inheritance polymorphism etc. which will be handled by 1 group of people called as application centric

As a result of these 2 models Impedance mismatch occurs and developers devote a lot of time and energy in writing a data access plumbing code like Ado.net for mapping and inserting it to the database
Ado.net Entity framework seeks to remedy to problem by providing the layer of abstraction between the logical data model and the application domain model

Entity Framework Code First Migration Approach

Code First is mainly used in Domain Driven Development (DDD) approach. We can focus on the domain design and start writing the classes based on the domain requirements
Code First API will create a database on the fly based on your entity class and configuration
Code First Entity framework 4.2 or previous version we need to use any of the database initializers methods and handle to seed or maintain data when there will be a change in the model
Code First Migration approach is very handy when compared to previous versions, as it is able to track the changes and handle the model changes smartly. Without the need to think about the dropping and recreating data
Code First Migration allows you to create a new db or update existing db based on your model classes by using package manager console present in visual studio

Advantages of using code first Entity Framework

Entity Framework enables developers to create data access application by programming against conceptual application model instead of programming against relational data storage schema
Application can work more in terms of Application centric conceptual model including types like inheritance, complex members and mappings
Entity Framework is an ORM tool that provides simple API to perform CRUD operations
Entity Framework also helps us to perform certain DDL and DML operations from the front end, rather than manually doing it in the back end
Entity Framework provides strongly typed classes, giving

Intellisense support,
compile time and
debugger option

Entity Framework automatically does the plumbing and mapping for you. So we developers need not to write most of the data access plumbing code i.e. usually required(e.g. Ado.net)
Lot of time is will be saved and it helps us to quickly develop the application and concentrate more on the Business centric details

MVC and Entity Framework Code First, Code Migration Approach

Create Project and Enable Entity framework code first migration approach

Video : https://www.youtube.com/watch?v=jAyDCUi9H4g

Create a new MVC 4 web application.
Give the name of the application and click on OK.

Select the required template and the View Engine.

Goto tools -> Library Package Manager -> Package Manger Console.
Install entity framework - 5 in package manager console by executing the command

install-package entityFramework -version 5.0.0.0

Create a new class for DBContext which acts like a bridge or connection object between database and the LINQ object
DBContext provides a abstraction layer between Application layer and Database layer.
DBSet will represent the table which will be present in the database.

Open the web.Config file and provide the required ConnectionString.
ContextName will be same as the 1 which we created earlier.
Also give the proper connecion string details like data source, Initial catalog and provider name etc.

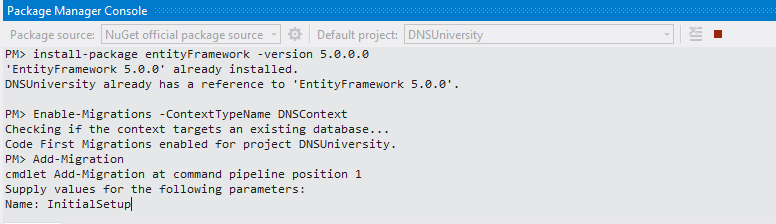

Goto Package Manager Console.
Enable the migrations for using Code First Code Migrations approach by executing the command

Enable-Migrations -ContextTypeName DNSContext

Code-First Migrations will take care of the data. So we no need to write the dropcreate database methods that was used in earlier old version of Entity frame work.

Once after enabling the migrations for the particular context we are using, we have to Add Migration.
Add Migration will generate Migration file, sql code and this will not be executed in SQL Server unless and until we run "update-database" command.

Code Migration File Generated.

"update-database" command will seed the database by running the code which is present in the code migration file.
Since we are running it for the first time,new database with name provided in the connection string of initial catalog will be created in the database

Create a new Course Model with required entities in the file.

Add a DbSet property in context class
Add-Migration and update the database

Create CRUD operations using scaffolding template

Video : https://www.youtube.com/watch?v=hwFzUYvbHFo

Add a Course Controller.
Select the scaffolding template "MVC controller with read/write actions and views, using Entity Framework".
Select the Data Context class.
CRUD operations in the Course Controller will be created with corresponding views will be created using scaffolding templates and Entity framework methods.

Add a ActionLink in the Nav bar for the Course.

Create a dropdownlist in MVC

Video: https://www.youtube.com/watch?v=SPND6UuGjQc

Let us add the dropdown to the domain entity with values hardcoded in the view

Course screen after

If you want the Hardcoded values to get it from controller

Provide the ViewBag in the View

Create a Model for Student screen and update database using code Migration

Video :https://www.youtube.com/watch?v=5AkoXZVSw-g

Create a new model for Student Page.

Update the DBContext by adding the new property for student

Now add a new migration for creating Student table in database
use "Add-Migration" command for creating the migration file

update the database using "Update-database" command in package manger console
Create a new Controller for Student with readWrite action selected and add the controller
